The H7 socket is a single-filament standard predominantly utilized in modern vehicles for dedicated low-beam projector setups or separate high-beam reflectors. Common applications in the Indian market include the Hyundai Creta, Volkswagen Polo, Mahindra XUV700, and Kia Seltos. Upgrading an H7 halogen to an LED requires strict adherence to optical and electrical compatibility.
The aftermarket is saturated with mathematically impossible wattage claims and generic bulbs that destroy projector optics. Installing an inferior, poorly aligned H7 LED inside a projector housing will result in severe dark spots, degraded throw, and restricted lateral vision. BIKER.STORE strictly catalogs technically verified H7 LED conversion kits engineered specifically to resolve these common integration failures.
Critical Engineering Specifications for H7 Upgrades:
-
Projector Optic Alignment: Projector lenses magnify light. If the LED substrate (the copper board holding the chips) is too thick, it creates a massive dark shadow down the center of your light beam. Our high-performance H7 inventory features ultra-thin copper substrates (0.72mm - 1.0mm) and premium CSP chips. This ensures continuous, unbroken illumination through the projector lens.
-

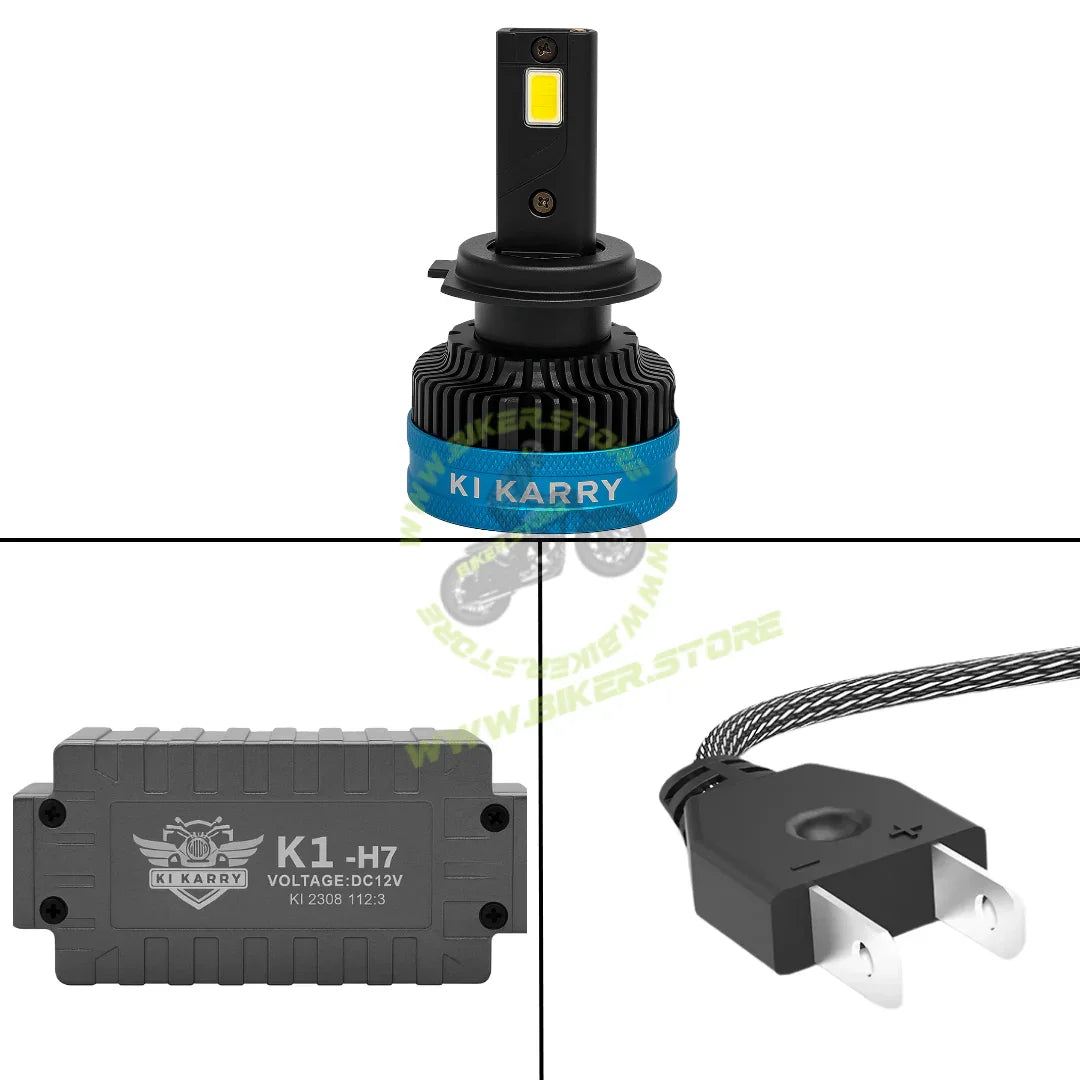

Canbus Integration: Modern vehicles, particularly European models (VW, Skoda, Audi) and advanced Indian SUVs, employ sensitive Canbus monitoring systems. Standard aftermarket LEDs draw significantly less power than factory halogens, triggering dashboard "Bulb Out" errors or causing the ECU to sever power, resulting in rapid flickering. Our catalog categorizes specific Canbus-Ready and Error-Free H7 models equipped with advanced internal decoders to bypass these system checks.
-

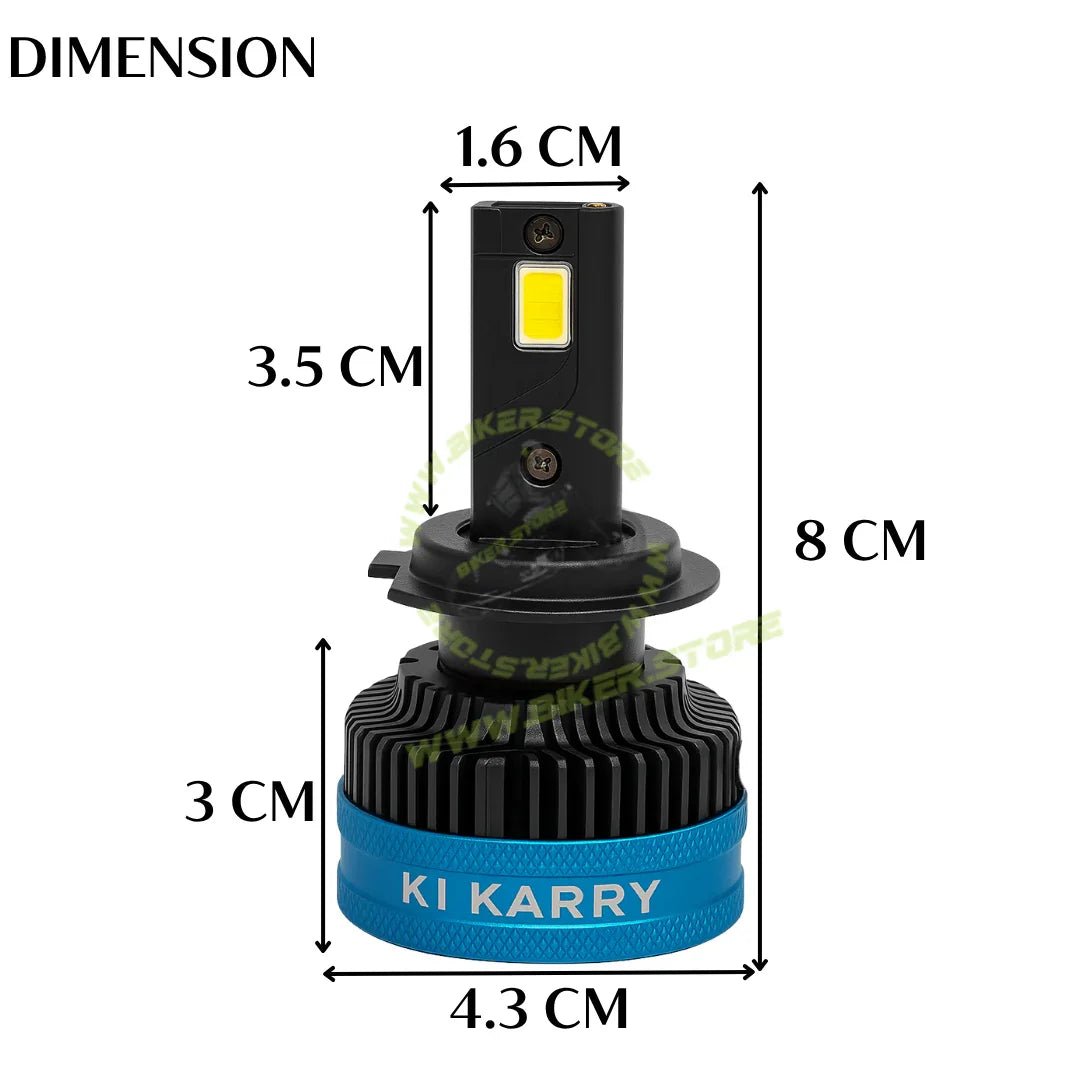

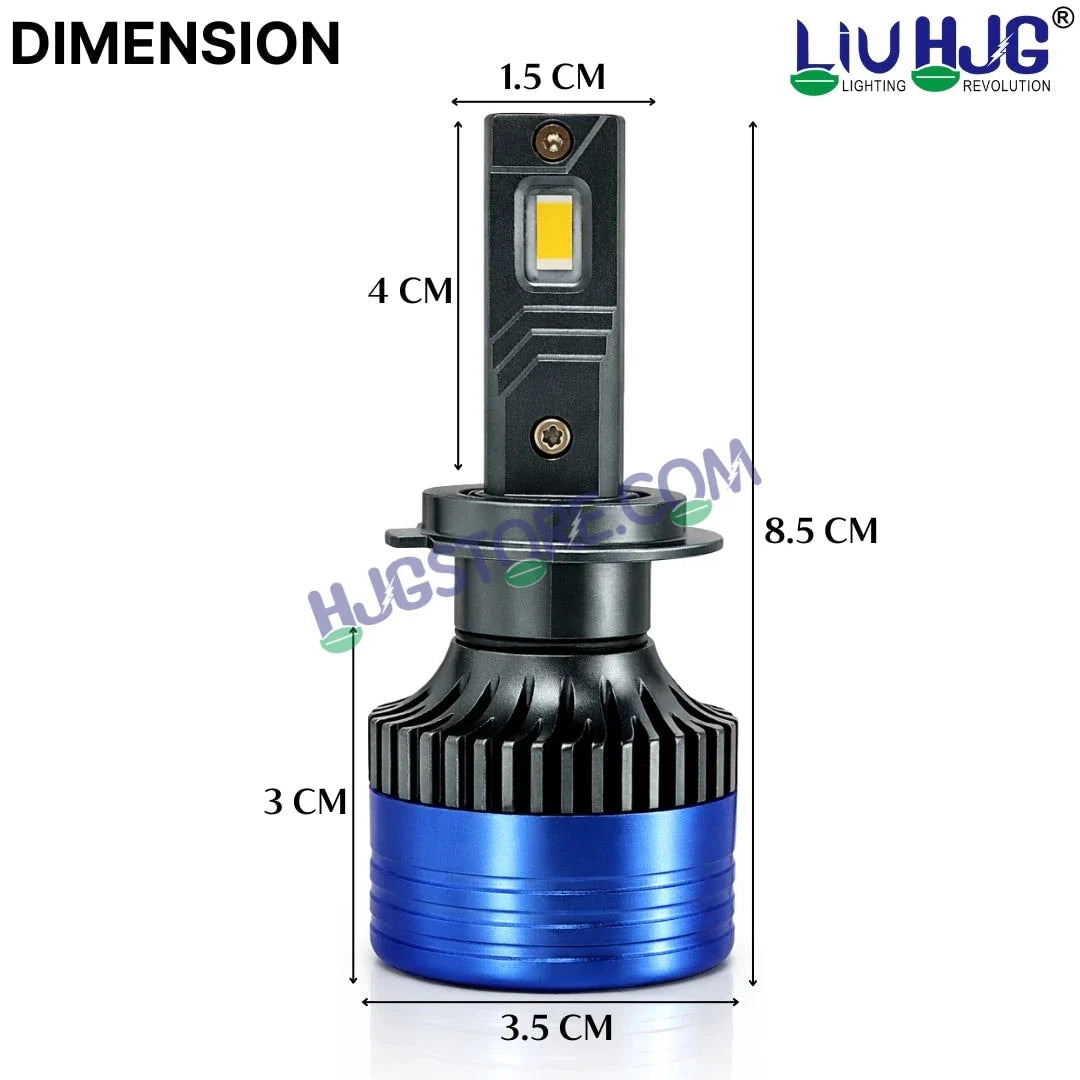

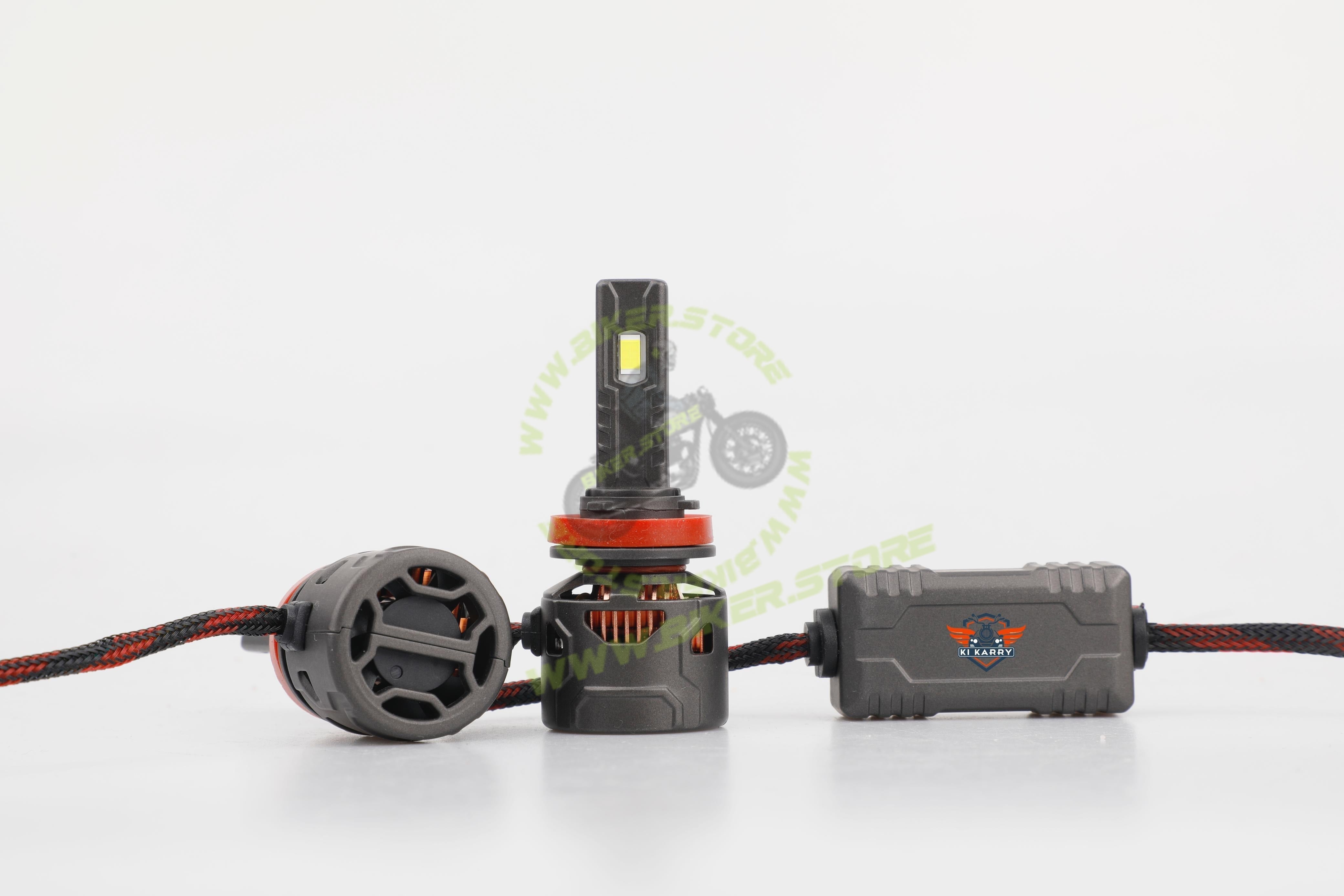

Thermal Management vs. Clearance Constraint: High-lumen output requires aggressive active cooling (fans). However, H7 projector housings are notoriously cramped. A massive heat-sink will physically prevent you from reinstalling the factory weather-seal dust cap. Operating without a dust cap immediately exposes the internal headlight assembly to moisture and dirt, causing permanent damage. We categorize our H7 bulbs by physical dimensions, offering "Mini 1:1" designs for restricted housings and high-output external-driver models for assemblies with adequate clearance.
Technical Frequently Asked Questions (FAQ)
Q: Are H4 and H7 bulbs interchangeable? A: No. An H4 is a dual-filament (high and low beam) bulb with a three-prong base. An H7 is a single-filament bulb with a two-prong base. They are physically and electrically incompatible. You must verify your vehicle's exact socket type via the owner's manual before purchasing.
Q: Why does my new H7 LED cast a dark shadow or "V" shape on the road? A: This is a byproduct of cheap manufacturing. The LED diodes are spaced too far apart on a thick central circuit board, creating a blind spot that your car's projector lens then amplifies. You must purchase H7 bulbs with an ultra-thin substrate design to eliminate this optical flaw.
Q: Do I need to modify my headlight housing to fit an H7 LED? A: In most cases, no. Our H7 bulbs are designed as direct plug-and-play replacements. However, certain vehicle models utilize proprietary locking rings or retaining clips (often found in VW, Mercedes, and Hyundai models) to hold the H7 bulb in place. Standard LED bulbs will not lock into these specific housings without an aftermarket H7 Retainer Adapter/Bracket.
Q: Will these LEDs trigger a Canbus error on my dashboard? A: If you install a standard LED in a Canbus-equipped vehicle, yes. To prevent dashboard warnings and strobe-effect flickering, you must select an H7 model explicitly marked as "Canbus-Ready." In highly sensitive vehicles, even a Canbus-Ready bulb may require an additional, external load resistor.
Q: Can I leave the dust cap off if the LED fan is too large? A: Absolutely not. Removing the dust cap exposes the sensitive internal reflector bowls and projector lenses to engine bay heat, dust, and moisture. This will quickly oxidize the chrome internals and permanently destroy the headlight assembly. If the factory cap does not clear the LED fan, you must purchase an extended aftermarket rubber dust cap or select a physically smaller "1:1 size" LED.
